Device and Data Context (DDC)

The DDC architecture is designed to handle high-frequency data streams (500Hz+) without freezing the React UI. It uses a decentralized approach where the Context manages Connections, but devices manage their own Data.

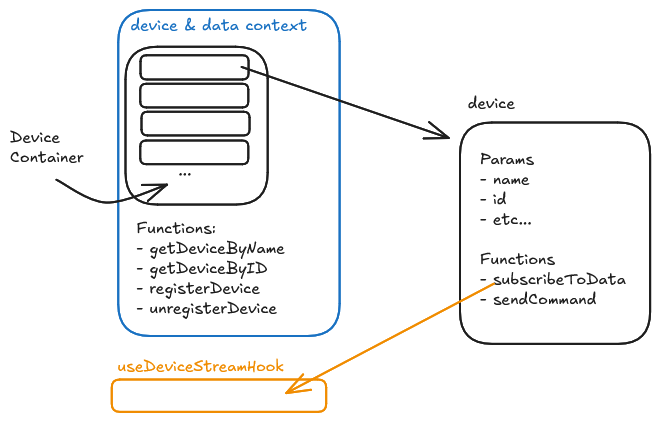

Higher Level Overview

• DDC (Context): Acts as a container. It stores references to active device instances.
• Device Classes; BaseDevice and children: The abstract device template. It defines behavior that all devices should obey, inncluding default functions.
  • Depending on the DeviceClass, logic is impleented to talk to hardware or other software (BLE, UDP, etc.).
• Hooks: Specialized React hooks couple between the non-reactive Device classes and the React UI.

The DDC Implementation

The DeviceProvider wraps your application and holds the single source of truth for which devices are currently instantiated.

// src/contexts/DDC.tsx
import React, { createContext, useContext, useState, useCallback } from 'react';
import type { BaseDevice } from '../DeviceProfiles/baseDevice';

interface DeviceContextValue {
    /** The raw map of all registered devices. Key: deviceId */
    devices: Map<string, BaseDevice>;

    /** Helper to find a device by its human-readable name */
    getDeviceByName: (name: string) => BaseDevice | undefined;

    registerDevice: (device: BaseDevice) => void;
    unregisterDevice: (deviceId: string) => void;
}

// ... Provider Implementation ...

export const useDeviceContext = () => {
    const context = useContext(DeviceContext);
    if (!context) throw new Error('useDeviceContext must be used within DeviceProvider');
    return context;
};

• When accessing something such as the devices list or the getDeviceByName function, you would need to access them through the useDeviceContext hook.

*See #accessing-data-coupling-frontend-and-backend for more details.

Creating & Registering Devices

Devices are not created by the Context. They are created by the UI (e.g., ConnectionsPage) using a Factory Pattern defined in the Device Registry.

1. Registry (DeviceRegistry.ts): Defines available device types (e.g., "Simulated Sine", "EMG Watch").
2. Factory (create): Instantiates the class (e.g., new SimulatedDevice(...)).
3. Registration: The UI calls registerDevice(instance) to add it to the DDC.

// Example: Creating a device in ConnectionsPage
const { registerDevice } = useDeviceContext();

const handleAddDevice = (typeId: string, hardwareId?: string) => {
    const def = AVAILABLE_DEVICES.find(d => d.id === typeId);

    // 1. Create Instance
    const device = def.create(uniqueId, hardwareId);

    // 2. Register to DDC
    registerDevice(device);
};

Accessing Data (coupling Frontend and Backend)

React cannot "see" inside a TypeScript class instance. We use hooks to bridge the gap.

Getting Device Information with Hooks

1. useDeviceStream (Data Hook)

• Purpose: Read high-speed data (500Hz).
• Mechanism: Uses a useRef to store the latest packet without triggering re-renders.
• Usage: UI components poll this ref (e.g., in a requestAnimationFrame loop) to draw graphs smoothly at 60fps.

const Visualizer = () => {
  const { getDeviceByName } = useDeviceContext();
  const device = getDeviceByName("EMG Watch");

  // Get the Ref (Updates silently at 500Hz)
  const dataRef = useDeviceStream(device);

  useEffect(() => {
      const loop = setInterval(() => {
          if (dataRef.current) {
              console.log("Latest Value:", dataRef.current.rawData);
          }
      }, 16); // 60fps UI update
      return () => clearInterval(loop);
  }, []);

  return <div>Visualizing...</div>;
}

2. useConnectionState (Status Hook)

• Purpose: Monitor connection health (Connected/Disconnected).
• Mechanism: Uses useState to trigger a re-render whenever the status changes.
• Usage: Buttons, Badges, Error Messages.

const StatusBadge = ({ device }) => {
    const { isConnected, state } = useConnectionState(device);

    return (
        <Badge color={isConnected ? 'green' : 'red'}>
            {state}
        </Badge>
    );
};

Base Device Architecture

All devices extend BaseDevice. This ensures they all speak the same language.

• connect() / disconnect(): Lifecycle methods.
• pushData(data): Called by the subclass when raw bytes are parsed. Notifies listeners.
• subscribeToData(callback): Used by the useDeviceStream hook to listen.
• subscribeToState(callback): Used by the useConnectionState hook to listen.

This architecture decouples the Hardware Driver (Device Class) from the UI Framework (React), allowing for high performance and easy testing.
